CargoKitchen - 5th Gen 4Runner

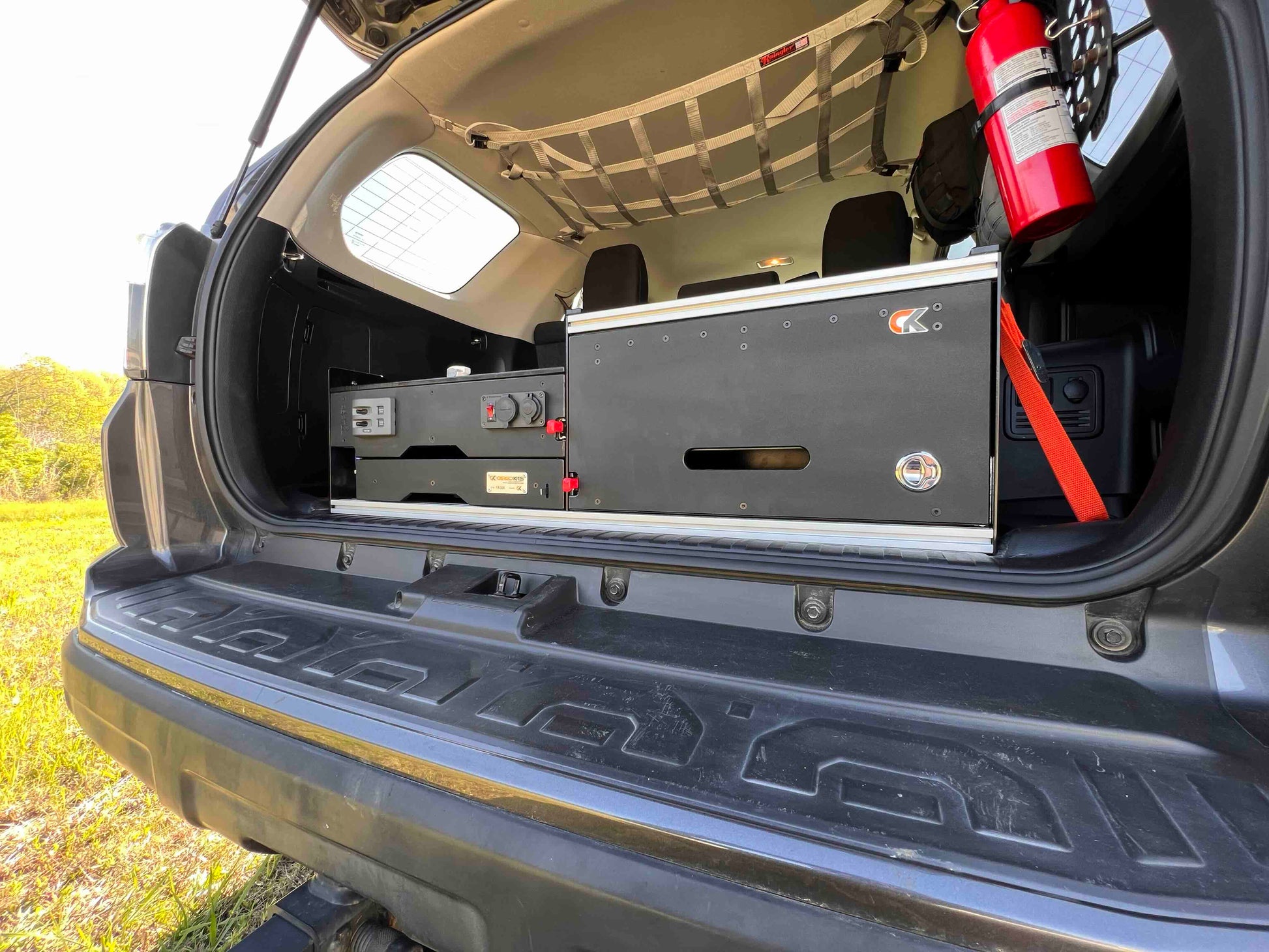

CargoKitchen is a rapid deploying kitchen that fits in the cargo compartment of an SUV. Including a two burner cooktop, refrigerator/cooler slide out, and a sink with running water. CargoKitchen has everything you need to whip up a delicious meal with ease while on the go without the hassles associated with setup and tear down. The unit can be easily removed from your vehicle when needed.

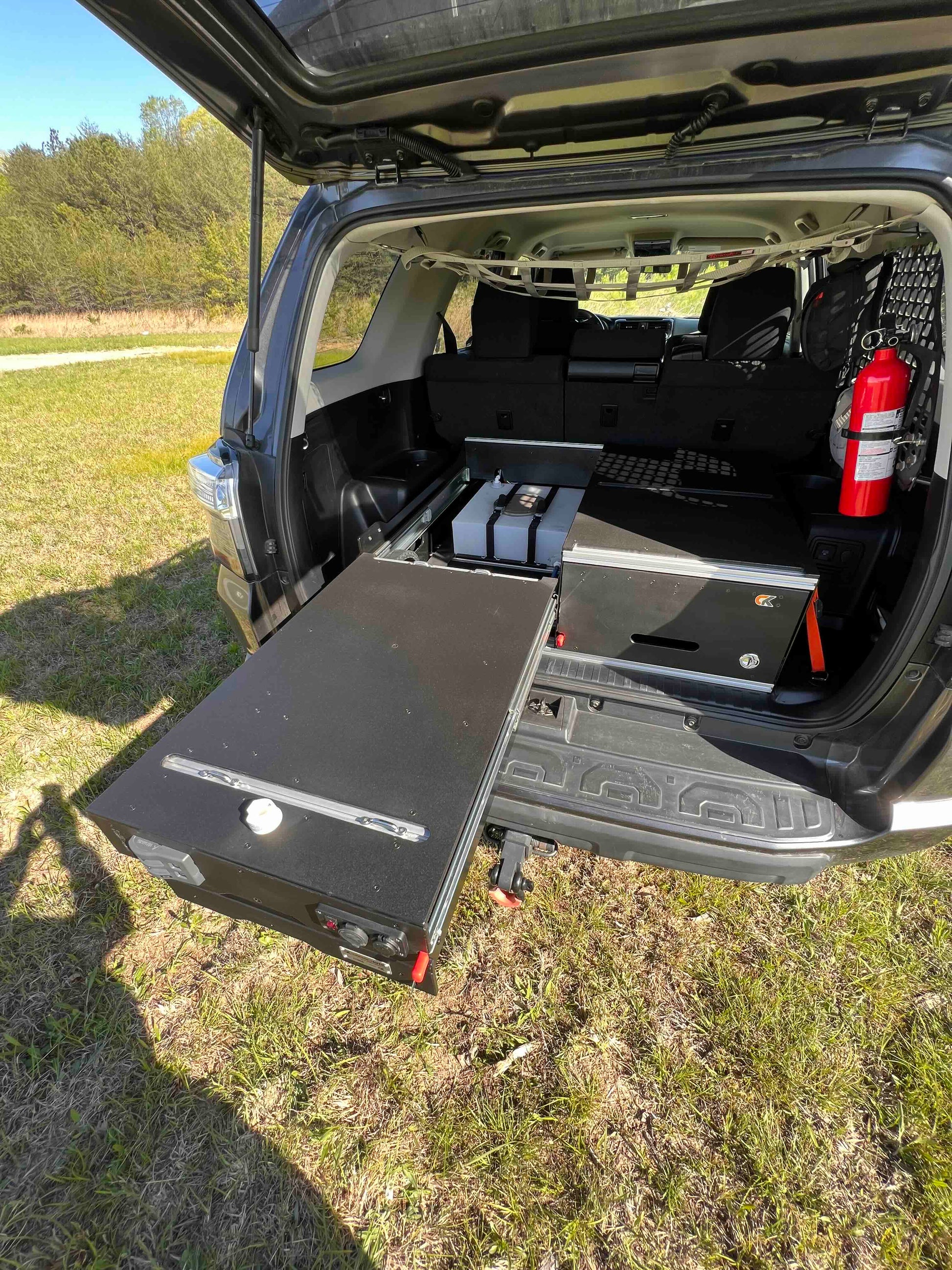

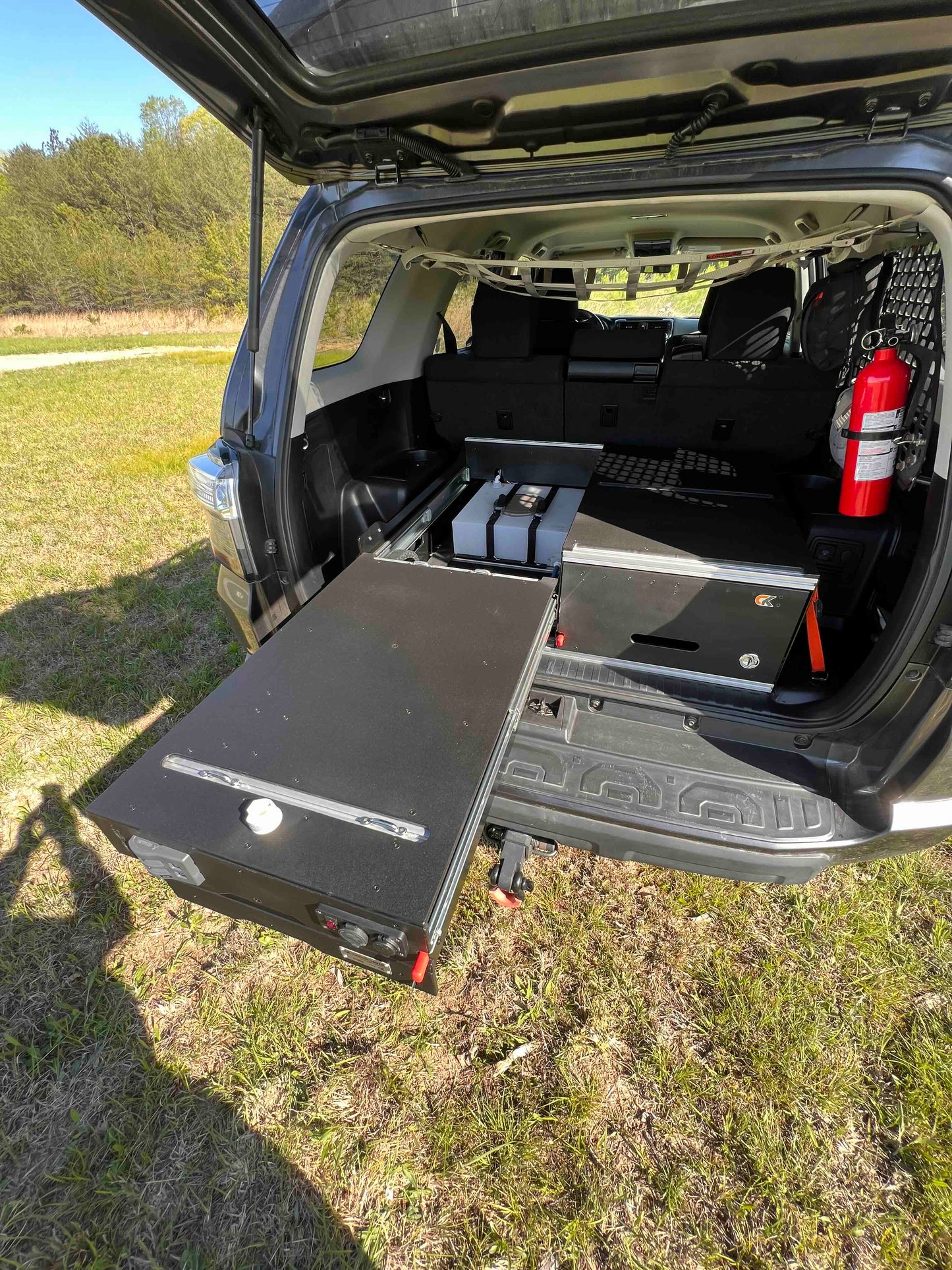

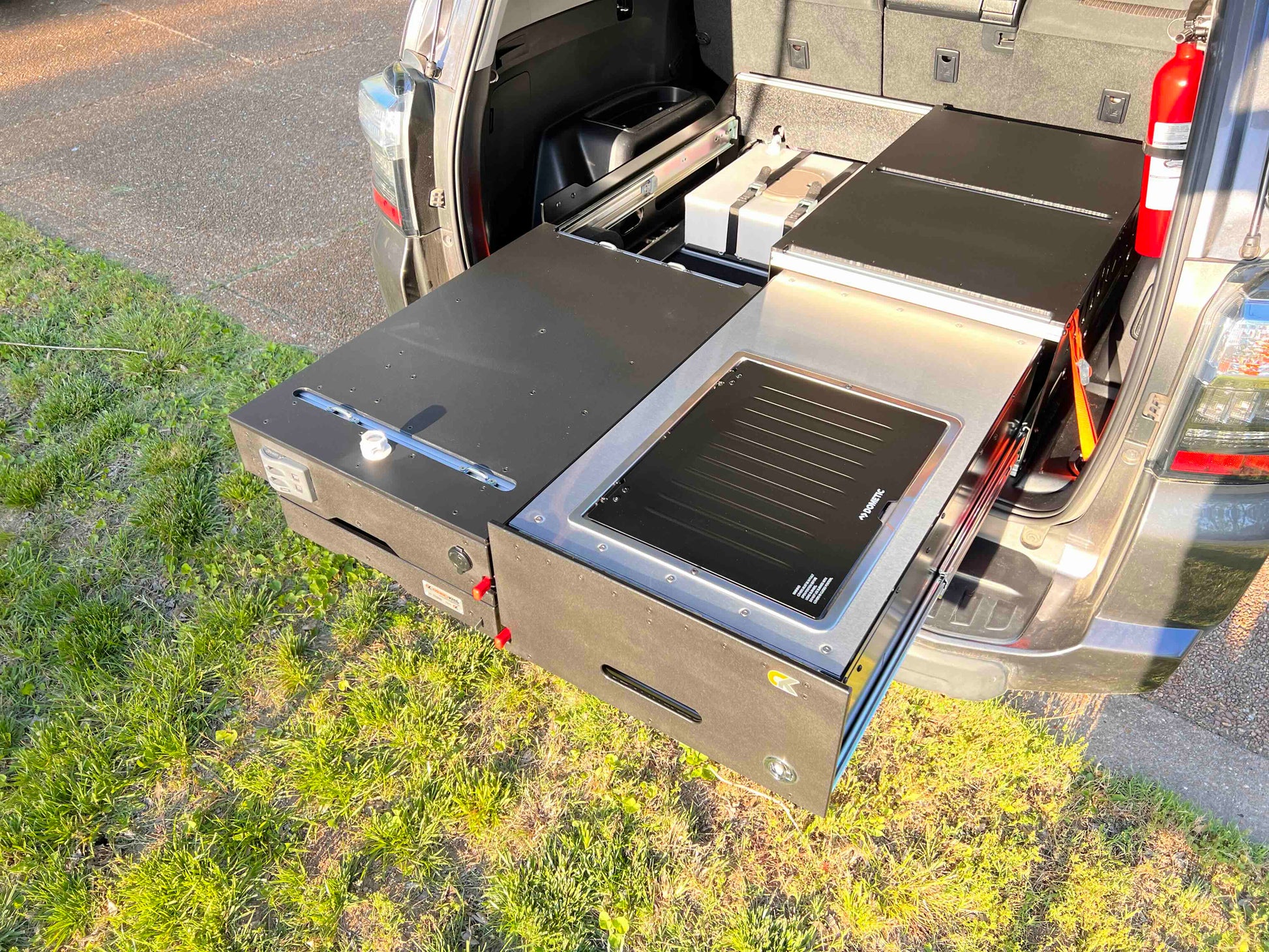

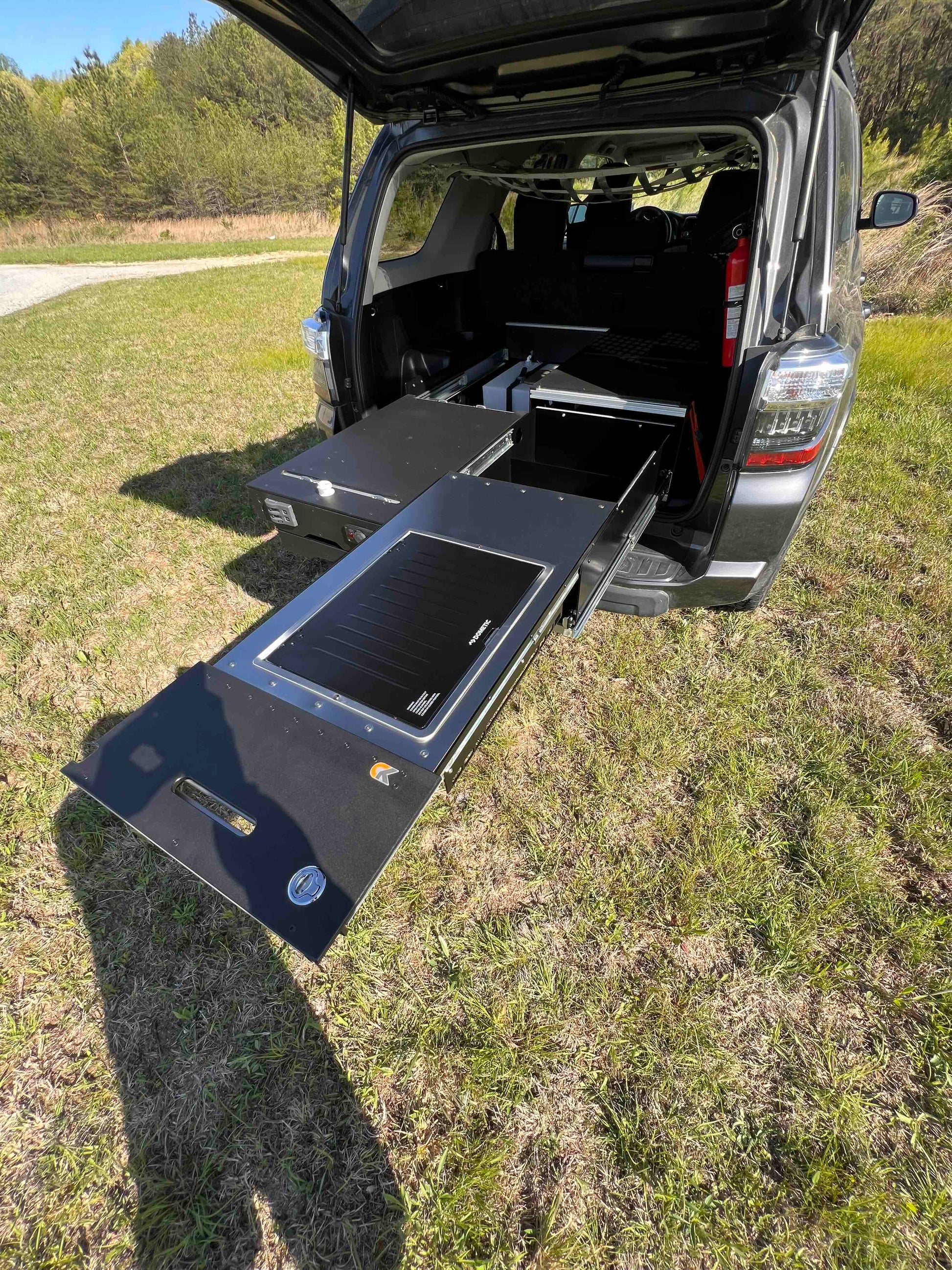

- Heavy Duty Refrigerator/Cooler Slide Out (Refrigerator/Cooler Sold Separately)

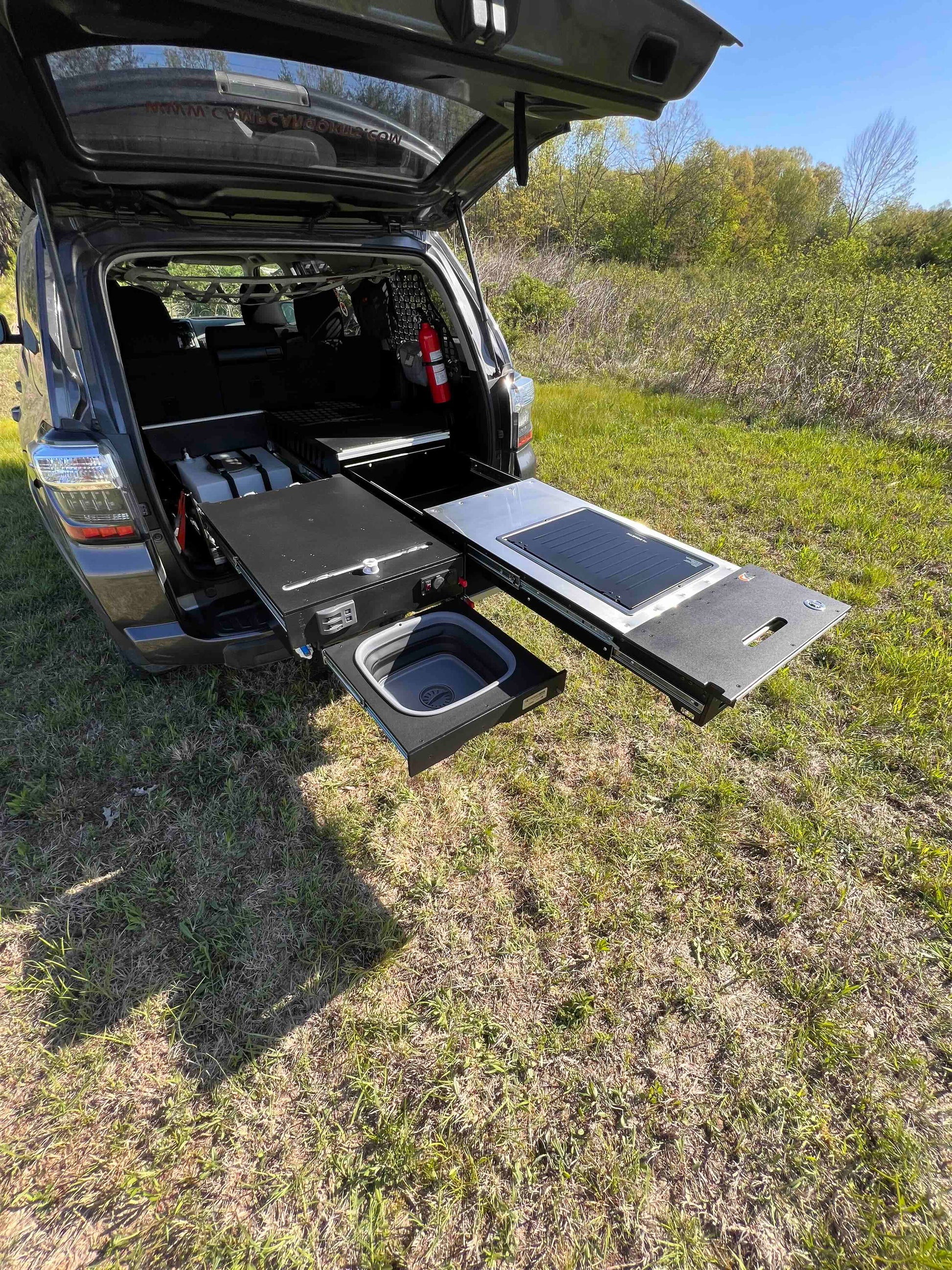

- Pop Down Sink Basin
- Quick Connect Water Port with Faucet and Hand Spray Adaptors

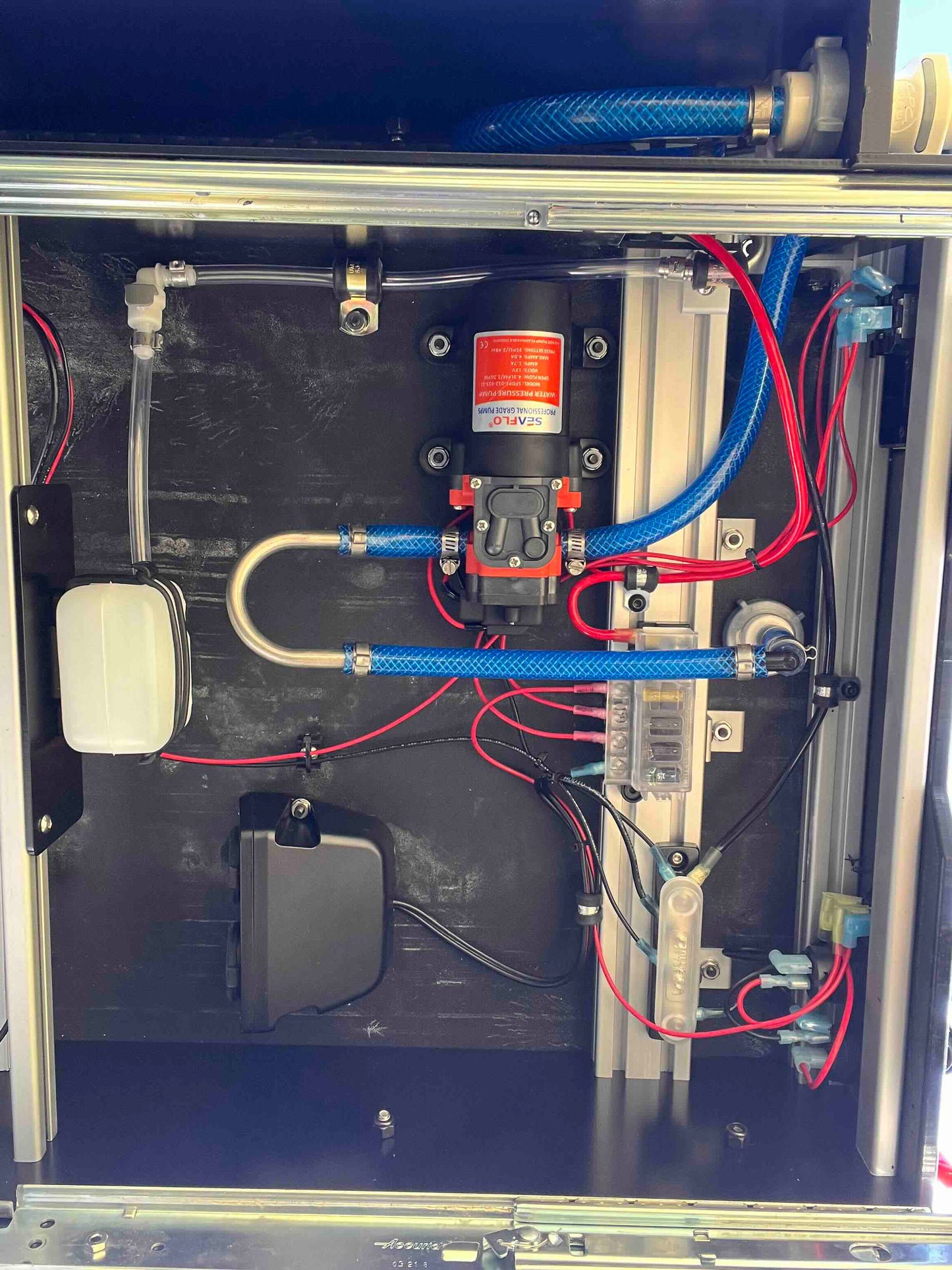

- Transfer Pump Capability (can be used to operate a tankless water heater for showering (sold separately) or transfer water from another vessel into the onboard tank)

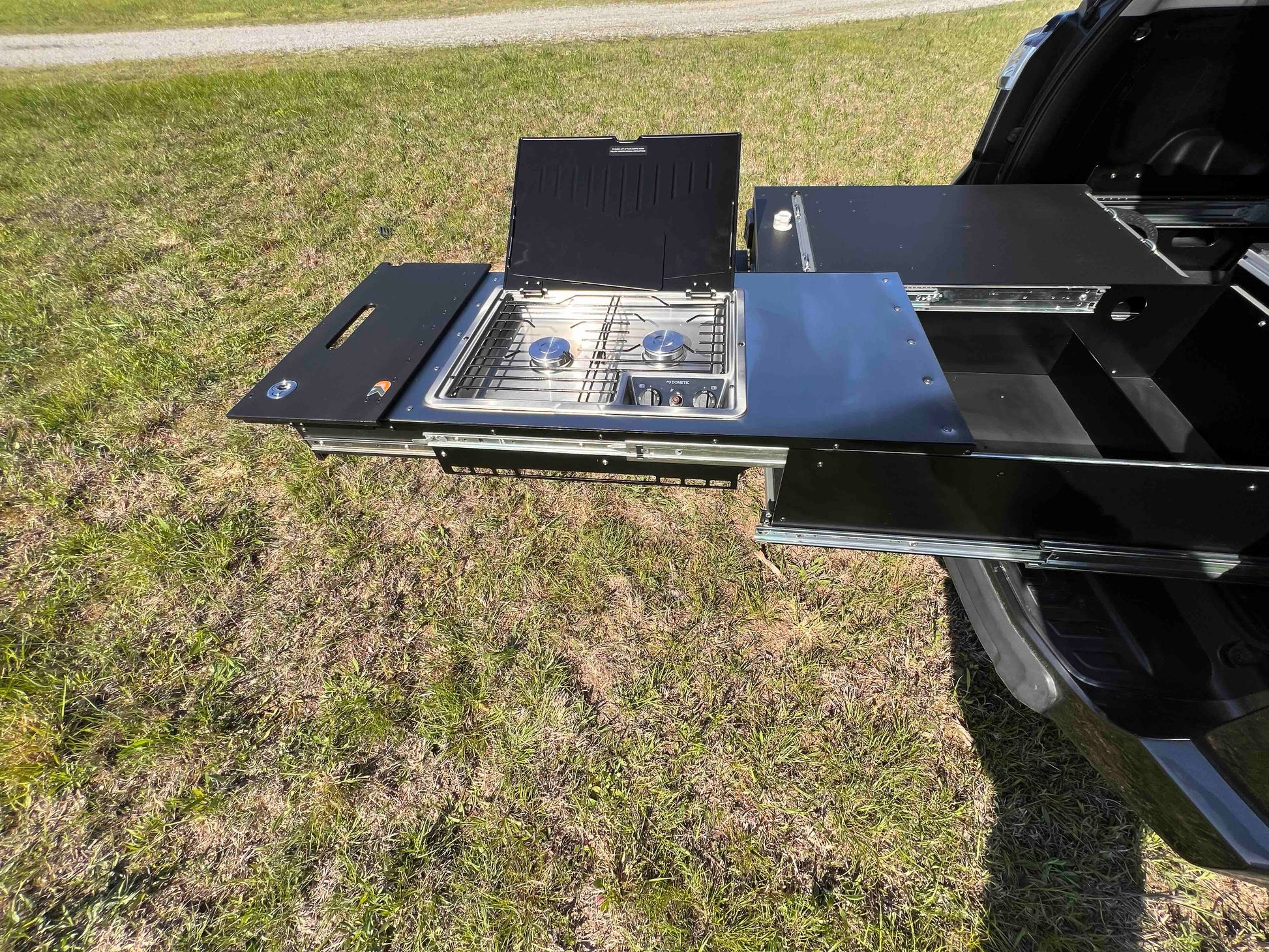

- Dometic Two Burner Propane Cooktop with Wind Deflector Cover
- Storage Drawer with Customizable Foam Organizational Insert

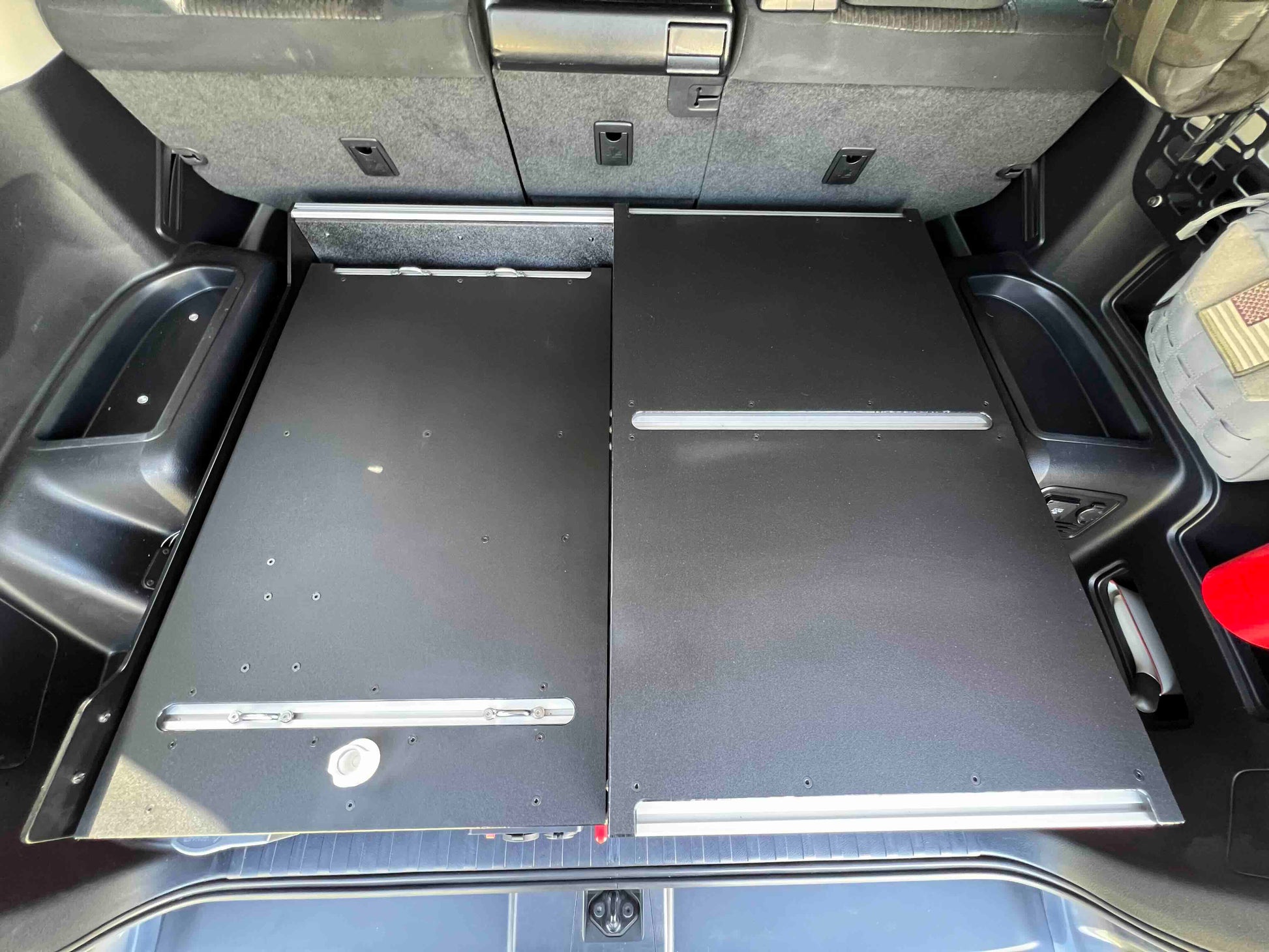

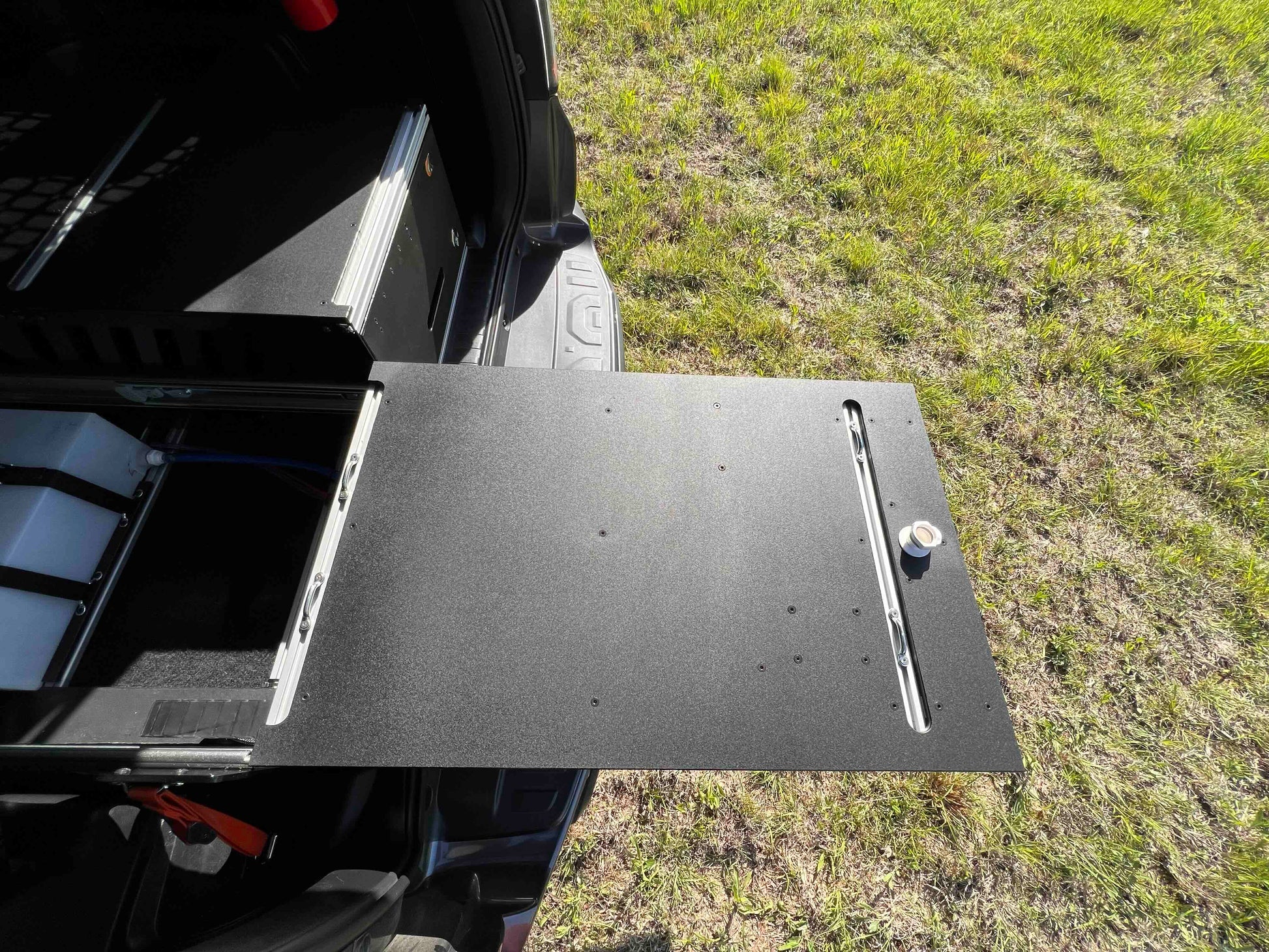

- Gear Storage Platform with Adjustable Tie Down Rails
- 5 Gallon Onboard Fresh Water Storage Tank
- Easily Removable (the unit simply slides into the cargo area, straps down, and gets plugged in)
- Refrigerator ready, prewired plug in with standard 12V socket, and 2 pin locking socket (Dometic style, others compatible also)

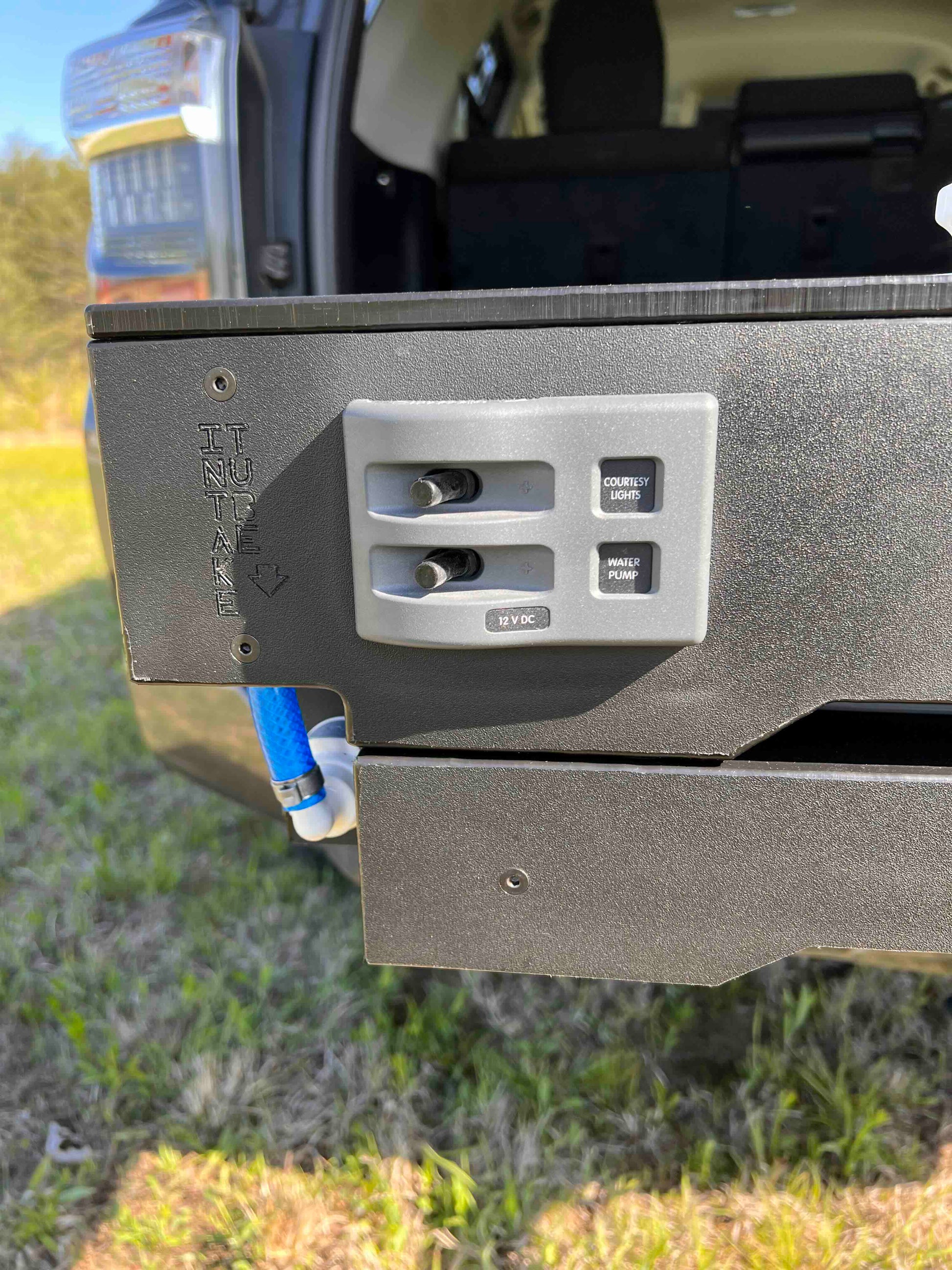

- Amber LED Courtesy Lighting

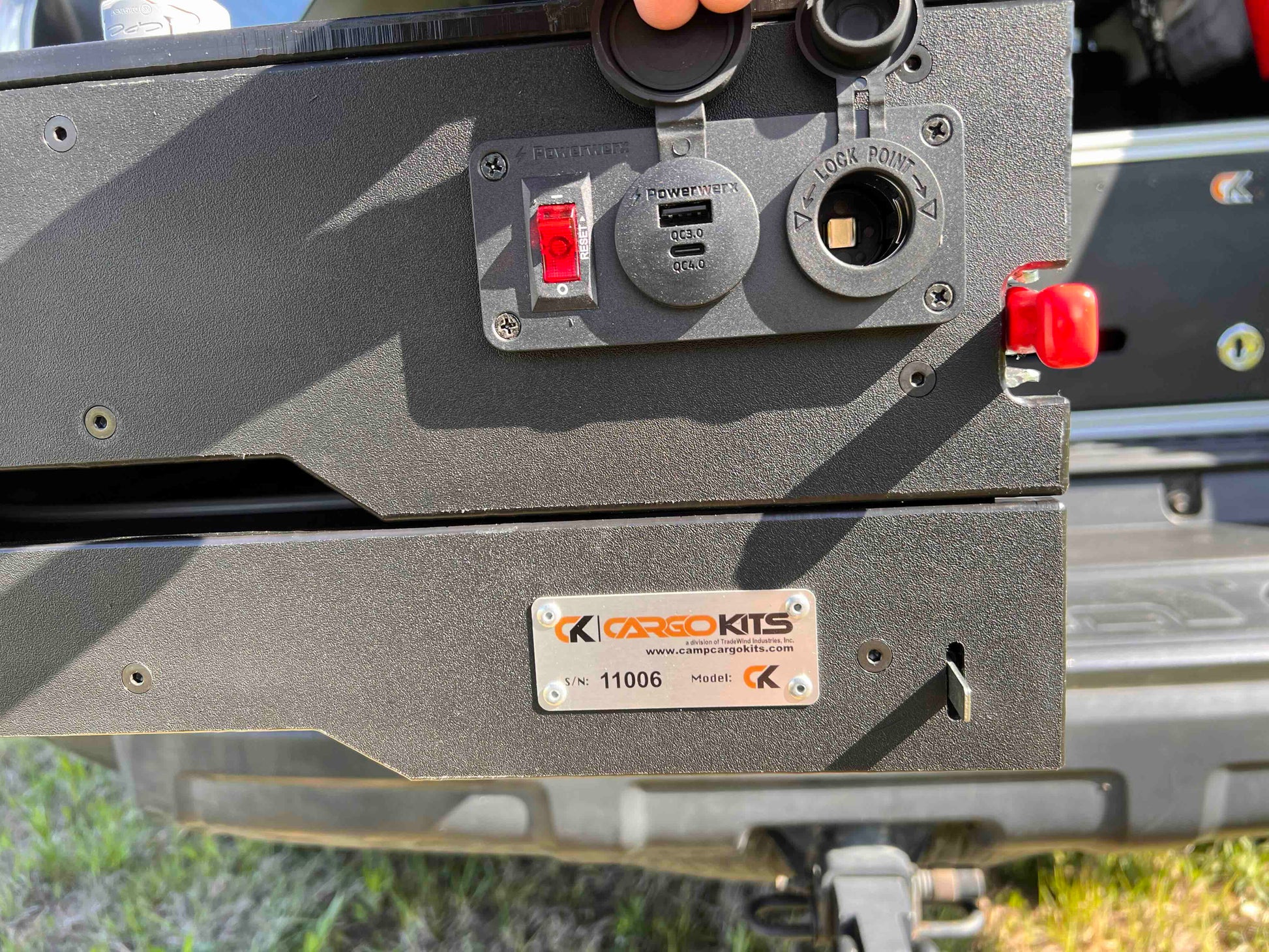

- USB Outlet with Voltmeter
- Dimensions: 41" W, 34" D, 13" H
- Weight: 195lbs
- Requires 12V Connection, 12V Installation Kit Included
- Water Tank Capacity: 5 Gallons
- Compatible with QCC1 Propane Tanks
- CargoKitchen Assembly
- Collapsible Sink Basin
- 12V Installation Kit
- Faucet Adapter
- Hand Spray Adapter
- Transfer Pump Hose & Remote Pick Up Tube
- Garden Hose Quick Connect Filling Adapter
- 2 Extra Quick Connect Fittings (Male/Female)
- 4 Tie Down Straps
Things To Consider
- Fridge Size: The max dimension for the fridge to fit with the back seats installed is 30"L, 19"W, and max of 21" H.
- Electrical Considerations: The CargoKitchen needs a 12v connection to operate. This can be achieved several ways. Your electrical needs really come down to one question, do you use or plan to use a refrigerator in your kit?
- With Refrigerator: Your two best options are: 1) A dual battery system for your vehicle. We can provide you with a Hardwire Kit for your CargoKitchen to connect it directly to an auxiliary battery. 2) The unit can be powered from a Portable Power Station. We will provide you with a Portable Power Station Installation Kit with all the necessary cables. When researching a Portable Power Station pay close attention to the 12v ports used on the station. They must be rated for 25amps minimum to operate the entire CargoKitchen and fridge from one connector. We recommend the GoalZero Yeti 1500X. It comes with two High Output 30amp Anderson Connectors that will pug directly into your CargoKitchen. There are other portable power stations that are compatible on the market, again you need an Anderson Type Connector (Google it) rated for 25amps, and please contact us with any questions.
- No Refrigerator: The electrical demands are significantly less if not running a refrigerator. For this installation we recommend using the Portable Power Station Installation Kit. This Kit includes a 15amp rated 12v car plug adapter to allow the unit to plug into your vehicle or to most Power Station's 12v port.

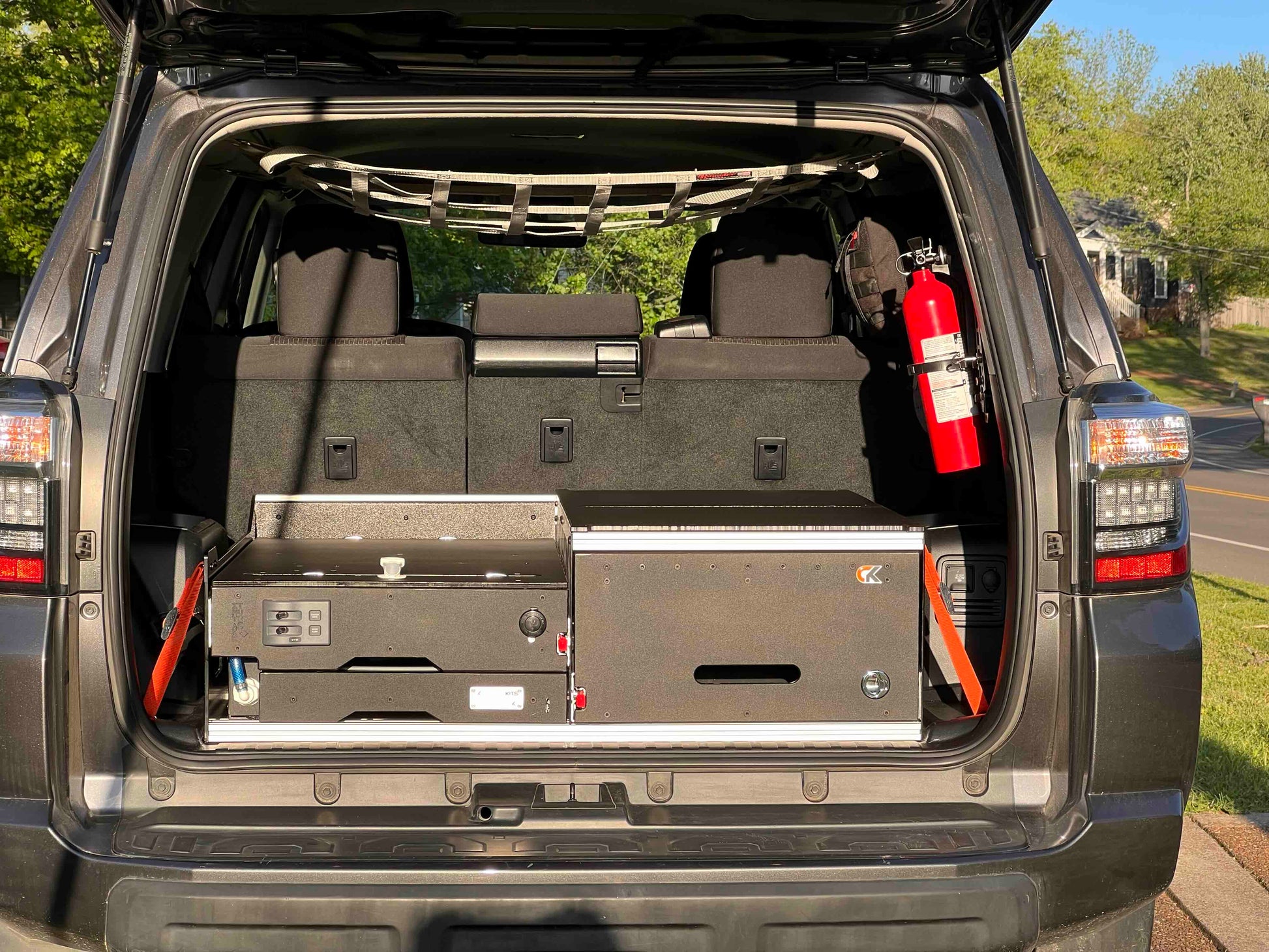

- Vehicle Compatibility: This unit was designed around the 5th Gen Toyota 4Runner. However, if your vehicle has a large enough cargo area with 4 anchor points there is no reason CargoKitchen won't function in your vehicle. We are currently working on additional models for specific vehicle platforms. As always reach out to us with your questions and feedback.
- Lead Times: CargoKitchen is manufactured in the United States. We are a build to order shop, meaning we build orders as they are placed. Our lead times will vary on parts available and order volume. Most orders are filled within 4 weeks, but please contact us for current estimated lead time.
